Produktuaren Deskribapena
Deskribapena | Parametroa |
Eredua | 1530 Fiber laser cutting machine |
Lan Eremua | 1500*3000mm |
Laser Potentzia | 1200W |
Laser uhinaren luzera | 1064 nm |
Lan Mahaia | Zerra-hortza |
Gehienezko abiadura inaktiboa | 1200 mm/s |
Posizioen zehaztasuna | ±0,05 mm/m |
Posizio Abiadura | 20 m/min |
Gutxieneko lerro-zabalera | ± 0,02 mm |
Ebaketa Lodiera | ≤6mm |
Kontrol Sistema | Cypcut |
Postu mota | red dot |
Energia-kontsumoa | ≤12KW |
Laneko Tentsioa | 380V/50Hz |
Gas Laguntzailea | oxygen,nitrogen,air |
Zuntz moduluaren lan-bizitza | 100.000 ordu baino gehiago |

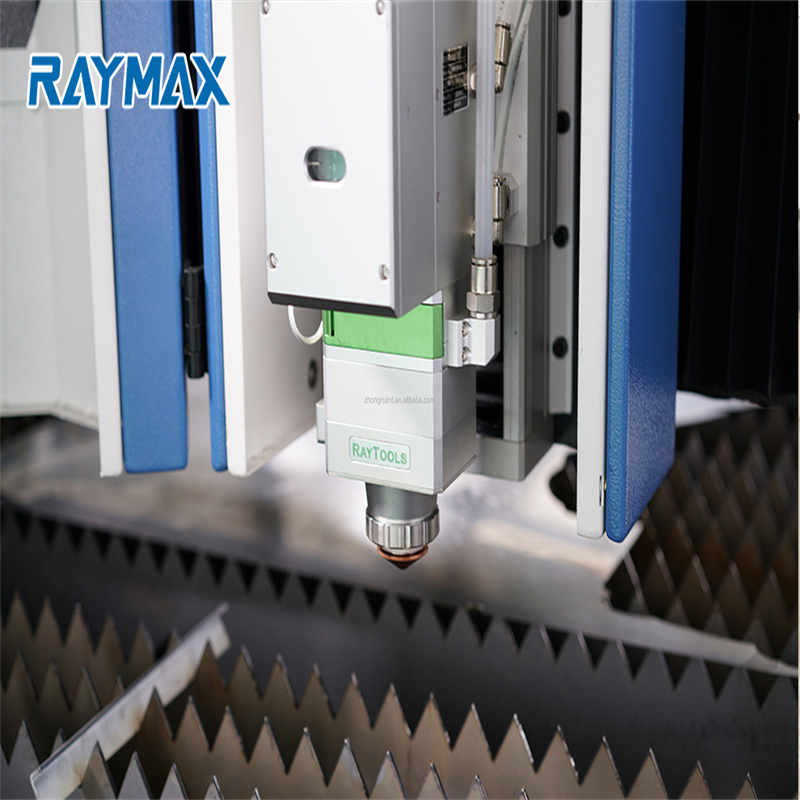

Laser zuntz mozteko burua | Lasermech made in USA |
Ezaugarriak
This Economical Fiber Laser Cutting Machine has high cost performance, low consumption and low cost, simple maintenance and convenient operation. And this machine can cut and process various metal materials, for example, the stainless steel, carbon steel and galvanized sheet.advantages:
1. Fast cutting speed, high efficiency, safe operation, and stable performance.
2. The spot quality is good, the deformation is small, the appearance is smooth and beautiful.
3. Adopting an imported servo motor and a guide transmission mechanism, and it has high cutting accuracy.
4. Professional software to design various graphics or text for immediate processing, flexible processing, simple and convenient operation.
Detailed Image

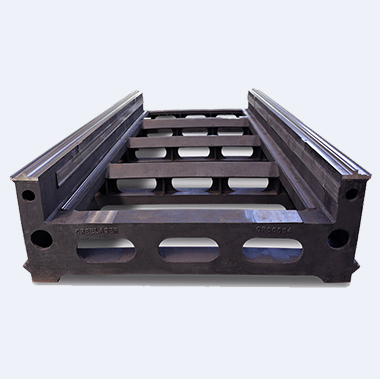

Cast Iron Bed
The cast iron bed is made of gray cast iron, which has a high carbon content and is not easily deformed by heat. Therefore, it can ensure that the machine has a long service life. In addition, compared with the ordinary bed, the cast iron bed is much heavier and has high stability, so it can ensure that the machine is more stable when the machine is running, and has higher processing accuracy and quality.

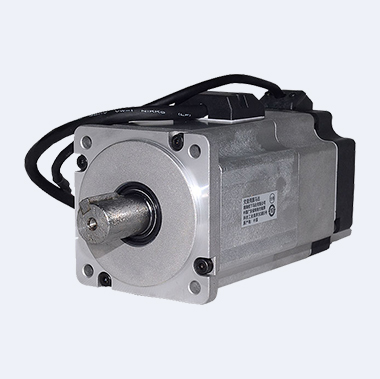

Servomotorra
This motor is known for its stability and speed, high cost performance, and is the world’s largest sales brand. It has the
characteristics of high speed and stable performance. The rated speed can reach 3000 rpm, which can ensure high speed and high efficiency while ensuring stable operation.

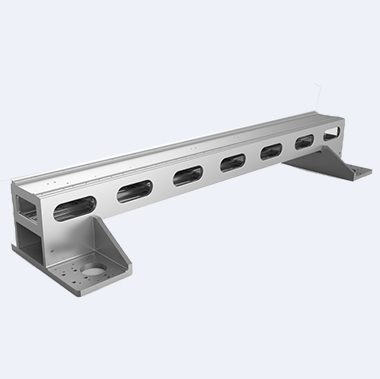

Cast Aluminum Beam
The cast aluminum beam has the advantages of high strength, strong stability, light weight, fast speed, strong impact resistance, safety and reliability. Therefore, it ensures higher machining accuracy when ensuring high-speed operation of the machine. In addition, the cast aluminum beam can also realize the rapid cutting of various graphics while satisfying the accuracy.

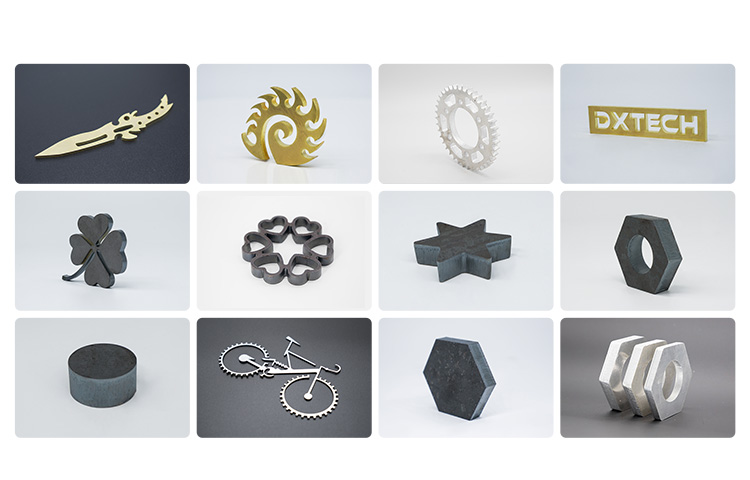

Sample Show
Enbalatzea eta entrega
Packaging Size | pertsonalizatua |
Enbalatzeko xehetasunak | 1. The innermost layer is EPE pearl cotton film package. 2. The middle layer is wrapping up with environmental protection material . 3. And the outermost layer is winding up with PE stretch film. 4. They're very environmentally friendly. 5. If you need a wooden box, we will make a wooden box. |
Gure Zerbitzua
Salmenta Aurrez Zerbitzua
* Kontsulta eta aholkularitza laguntza.
* Laginak probatzeko laguntza.
* Ikusi gure Fabrika.
*More than 95% of the timely response rate, timely response to customer questions.
Salmenta Osteko Zerbitzua
* Makina nola instalatu trebatzea, makina nola erabili trebatu.
* Atzerrian makineriaren zerbitzurako prest dauden ingeniariak.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
ohiko galderak
1. What is fiber laser cutting machine ?
A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc. Maxphotonics - Made in China
2. What's the max. cutting thickness?
Cutting thickness is related to laser power. 500W: 3mm stainless steel, 6mm carbon steel 1000W: 5mm stainless steel, 12mm carbon steel 2000W: 10mm stainless steel, 18mm carbon steel Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
3. Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
4: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
5: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can
also provide Door service if you need.
6: I don’t know which one is suitable for me ?
A: just tell us below information 1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line.
7: Why the machine price not include laser tube?
A: Different customers, different requirements, and many different laser power can be optional, some customers only want to cut the non-metallic materials, other customers want to cut non-metallic materials and metallic material, that's why we list the price not include laser tube parts.
Xehetasunak
- Aplikazioa: LASER EBAKETA
- Material aplikagarria: metala
- Egoera: Berria
- Laser mota: zuntz laserra
- Ebaketa-eremua: 1500*3000mm
- Ebaketa Abiadura: 0-120m/min
- Onartutako formatu grafikoa: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Ebaketa-lodiera: 0-20mm
- CNC edo ez: Bai
- Hozte modua: URA HOZTEA
- Kontrol softwarea: FSCUT
- Laser Source Brand: customized
- Laser Head Marka: Raytools
- Servo Motor Marka: FUJI
- Guiderail Marka: HIWIN
- Kontrol Sistema Marka: Cypcut
- Pisua (KG): 2000 KG
- Salmenta puntu nagusiak: automatikoa
- Bermea: 1 Urte
- Applicable Industries: Manufacturing Plant, Home Use, Advertising Company
- Makineria probaren txostena: emandakoa
- Bideoa irteera-ikuskapena: Emandakoa
- Oinarrizko osagaien bermea: Urte 1
- Oinarrizko osagaiak: Motorra
- Funtzionamendu modua: pultsatua
- Konfigurazioa: 4 ardatz
- Manipulatutako produktuak: Txapa
- Ezaugarria: Urarekin hoztuta
- Laser Power: 1000W
- Cooling Way: Water Cooling and Protection System
- Working Table: Sawtooth Platform
- Lan eremua: 1500*3000mm
- Cutting materials: Stainless steel, carbon steel, etc.
- Driving system: Fuji servo motor made in Japan
- Liner guider system: PMI made in Taiwan
- Rack system: VASTUN made in TAIWAN
- Electrical components: Schneider made in France
- Marketin mota: Produktu arrunta
